Envo Flush

S-5 3D Concealed Hinge

Envo Code: ECH.1001.01

These are unique to other invisible hinges as not only do they have no visible screws, they come with an ‘Easy Hook’ feature. This allows the hinge to be separated into two parts, one part is fitted to the frame and the other to the door.

The door is then lifted into position where the hinge parts hook together, holding in place while the screw fixings are inserted. This feature enables one person to complete the installation without assistance.

The minimum door thickness is 35mm and will allow the door to open 180 degrees. Hinges are supplied as single items with fixings.

Please see this S-5 as the FD30 option.

For more technical information, please see the resources section below.

Envo Code: ECH.1001.01

These are unique to other invisible hinges as not only do they have no visible screws, they come with an ‘Easy Hook’ feature. This allows the hinge to be separated into two parts, one part is fitted to the frame and the other to the door.

The door is then lifted into position where the hinge parts hook together, holding in place while the screw fixings are inserted. This feature enables one person to complete the installation without assistance.

The minimum door thickness is 35mm and will allow the door to open 180 degrees. Hinges are supplied as single items with fixings.

Please see this S-5 as the FD30 option.

For more technical information, please see the resources section below.

Available finishes.

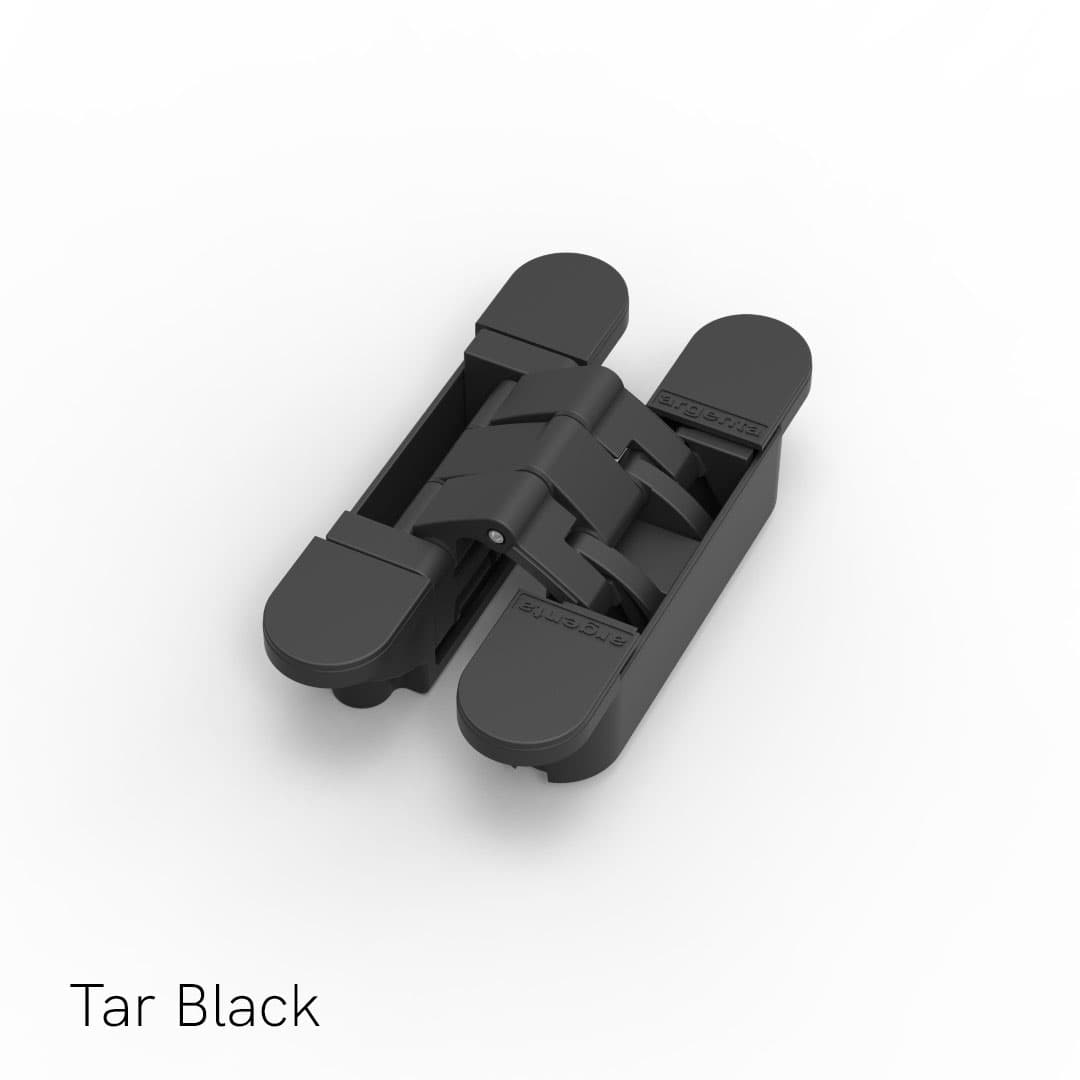

S-5 Tar Black invisible hinge for flush jib doors

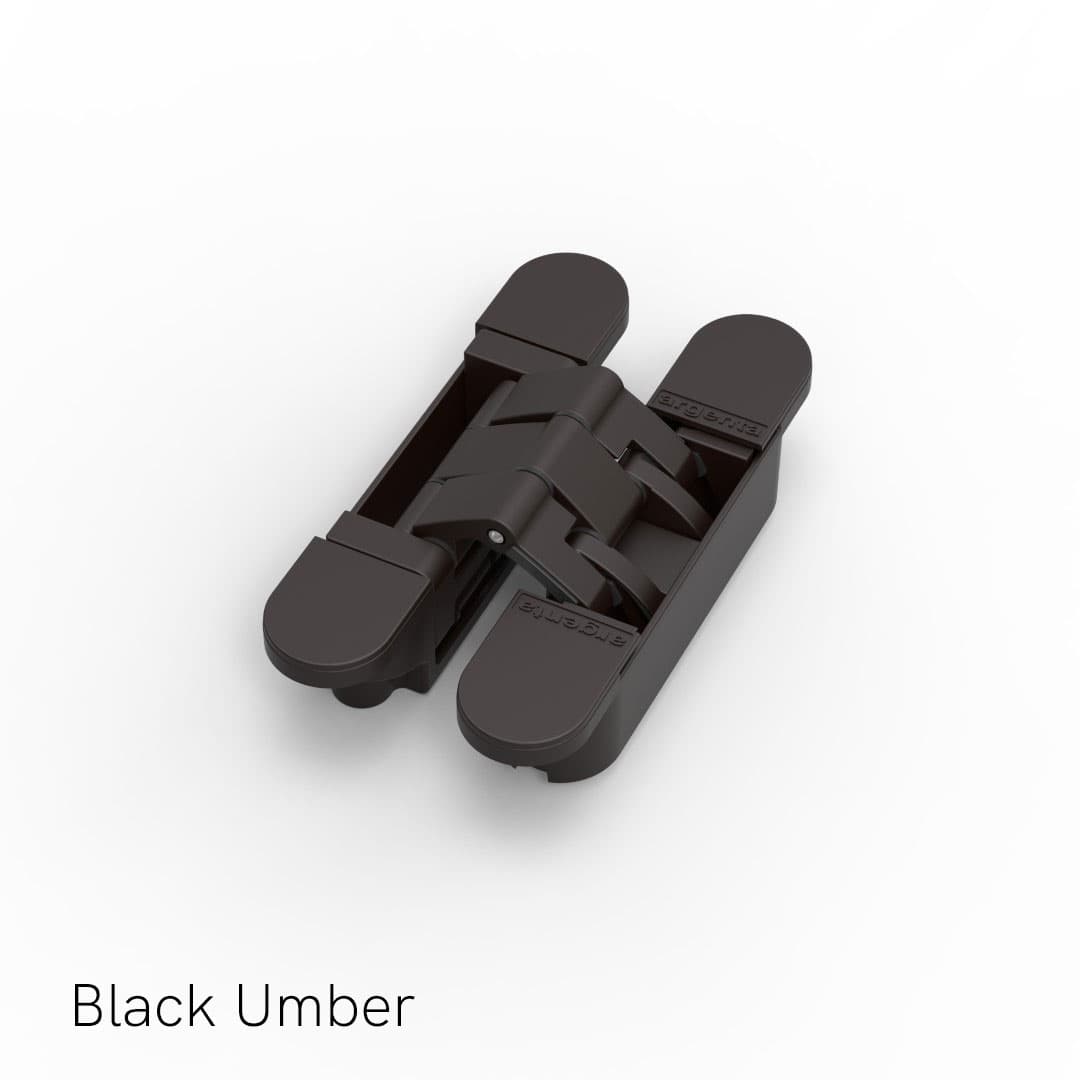

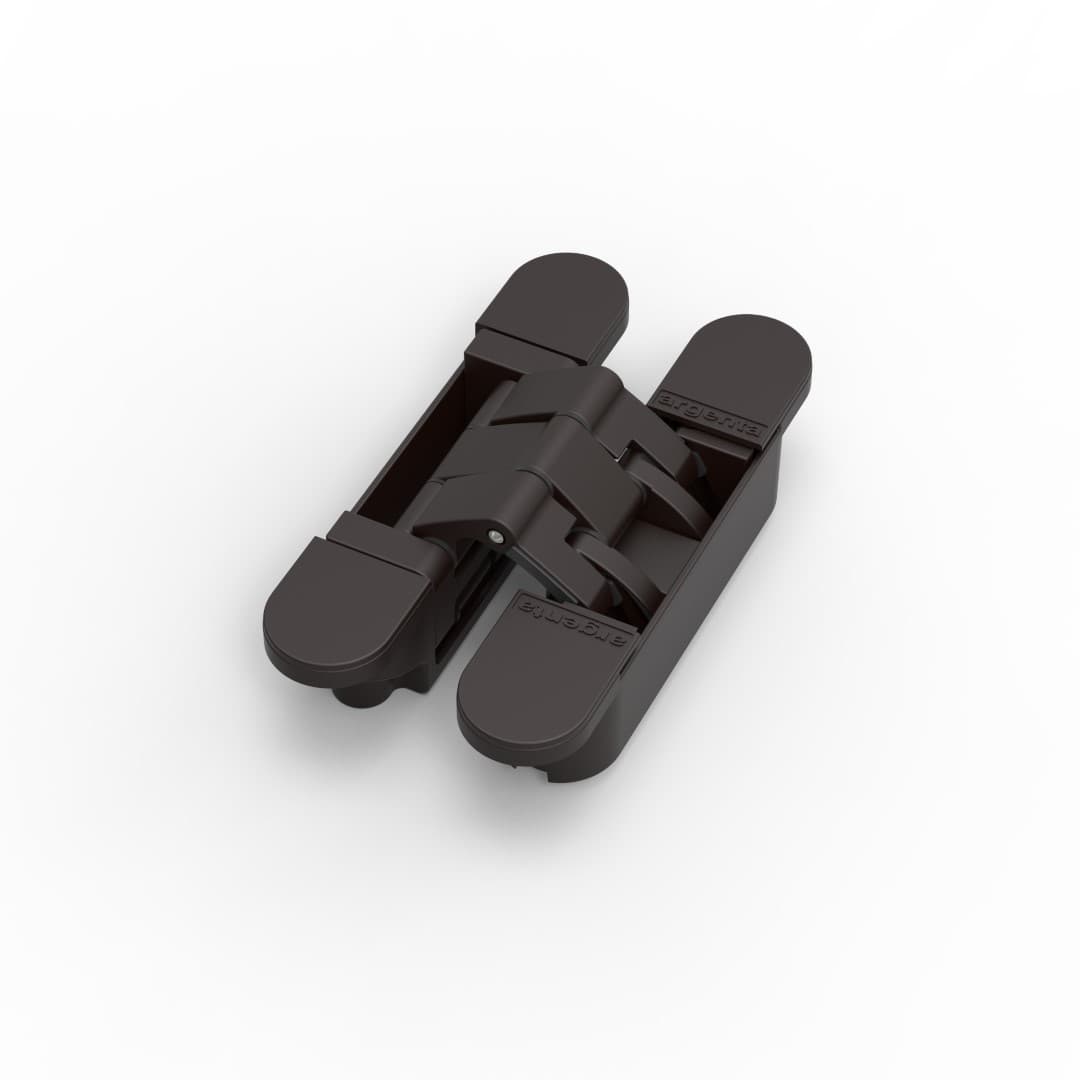

S5 Black Umber invisible 3D hinge for flush jib doors

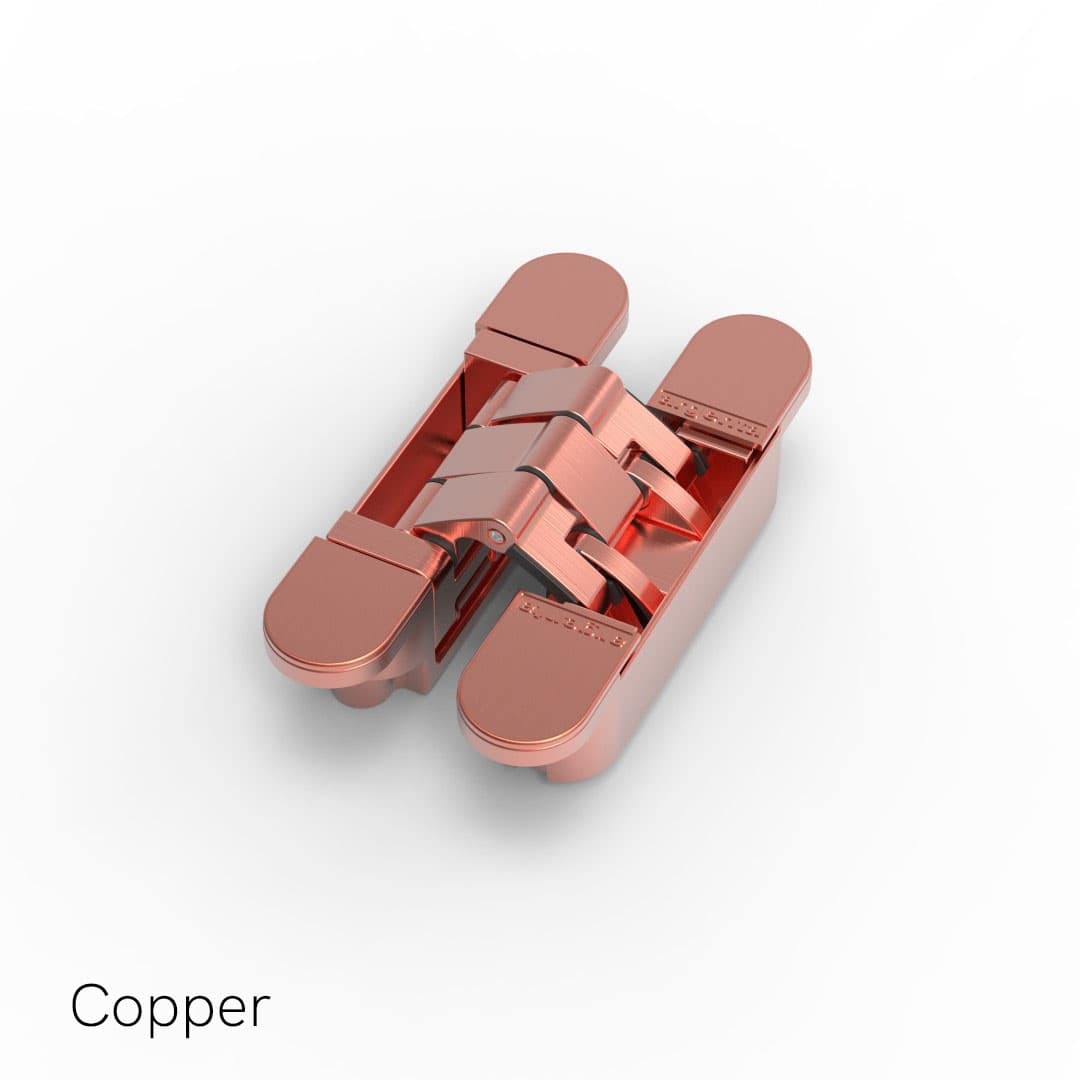

S5 concealed 3D hinge for a flush jib door in Copper

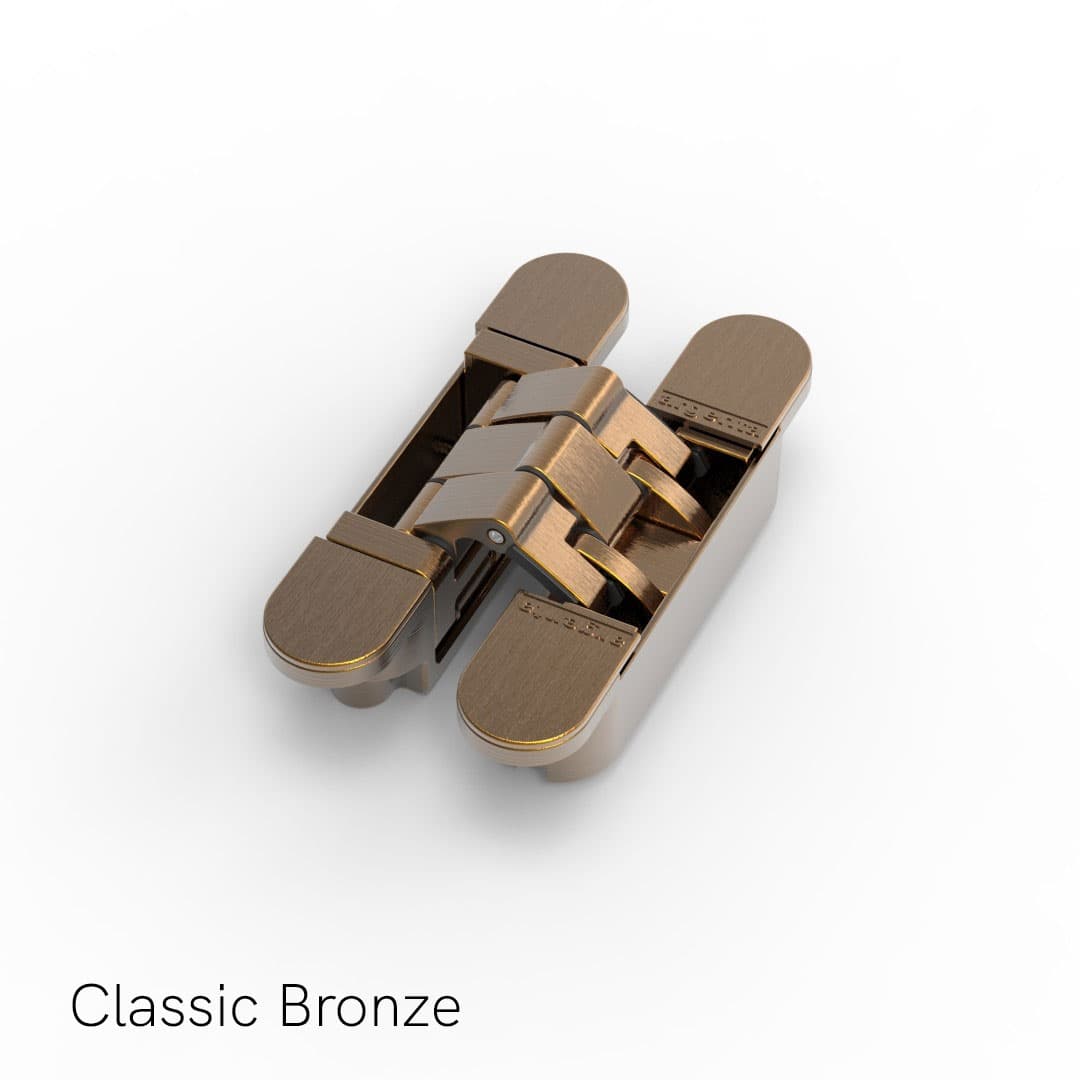

S5 concealed 3D hinge for a flush jib door in Classic Bronze

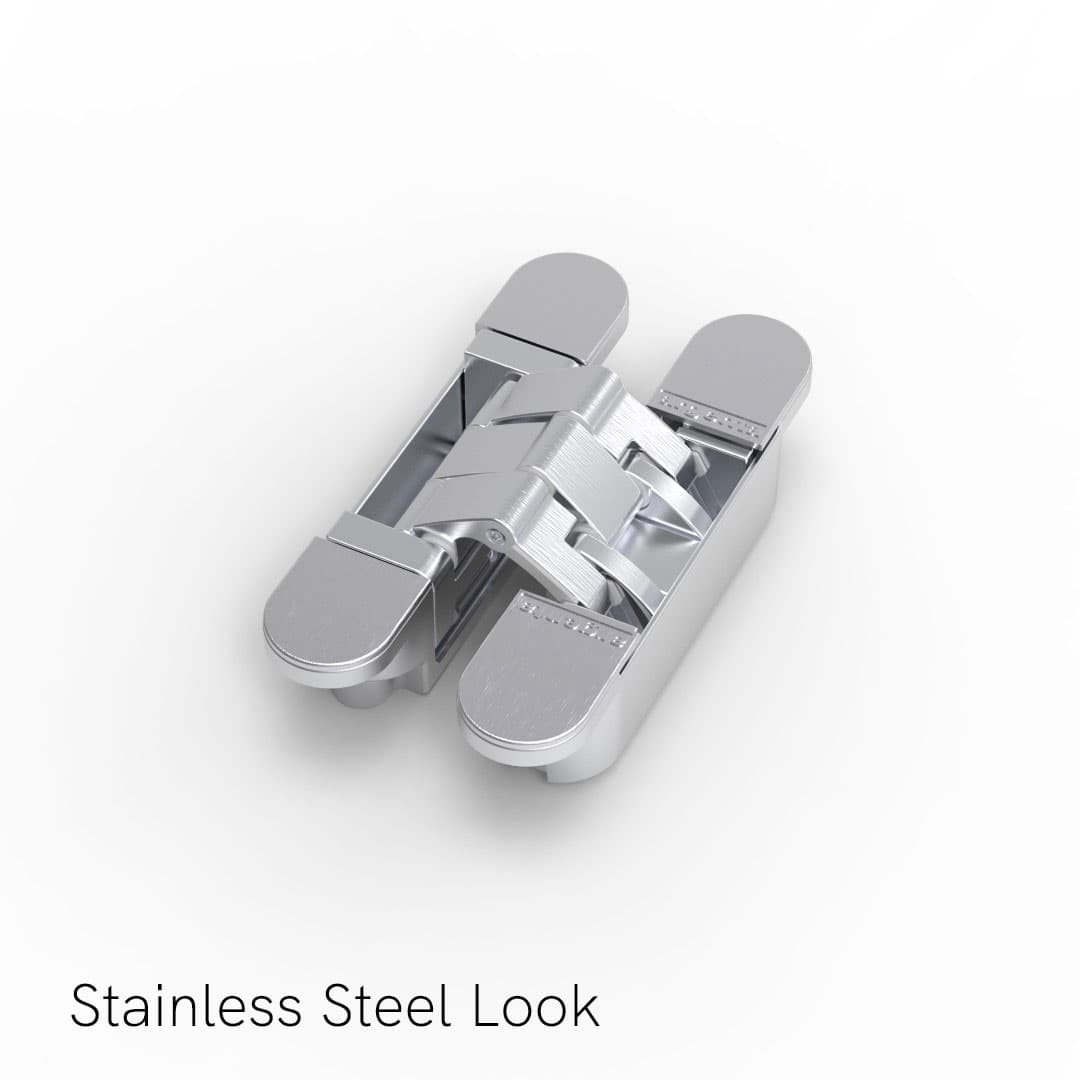

S5 concealed 3D hinge for a flush jib door Stainless Steel Look

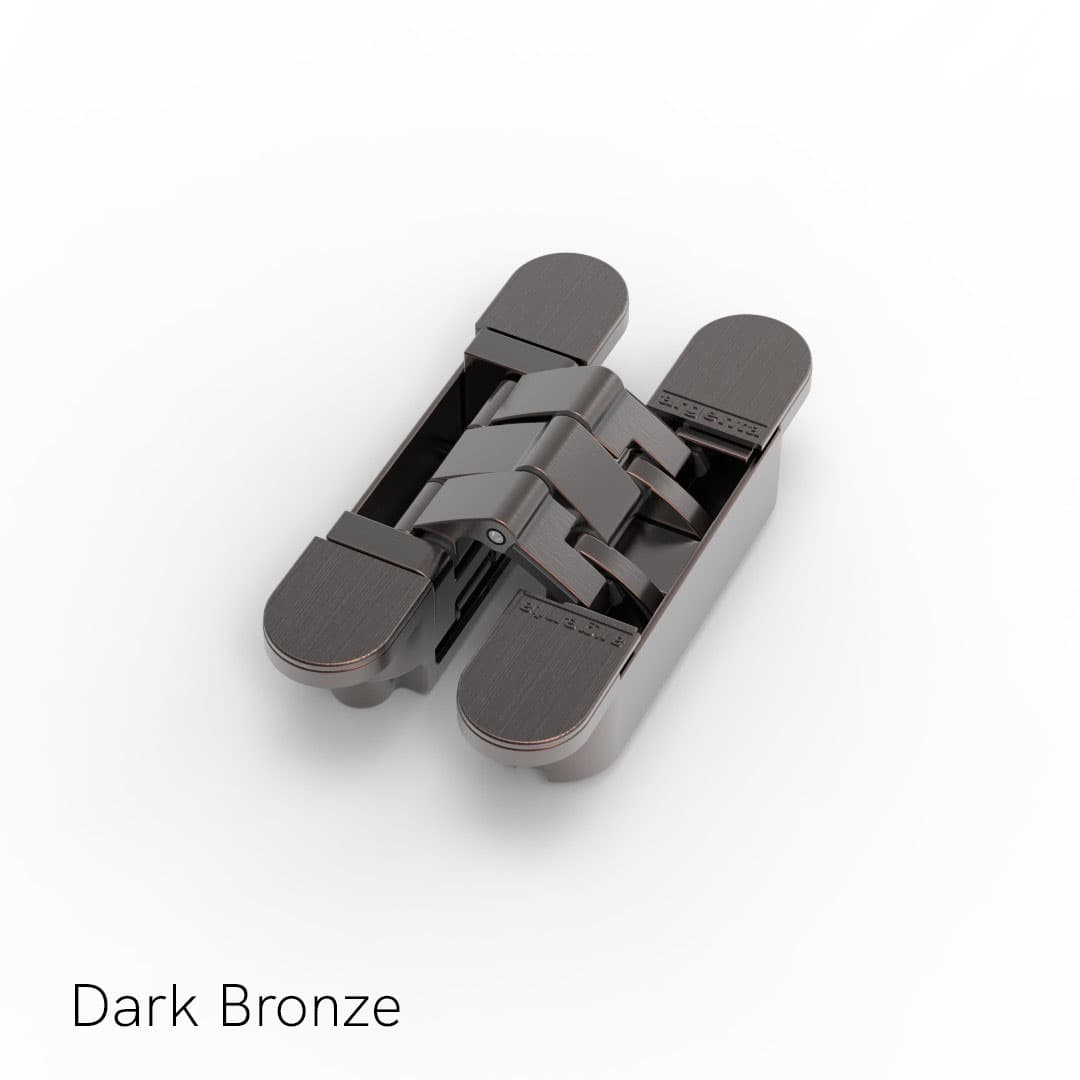

S5 concealed 3D hinge for a flush jib door Dark Bronze

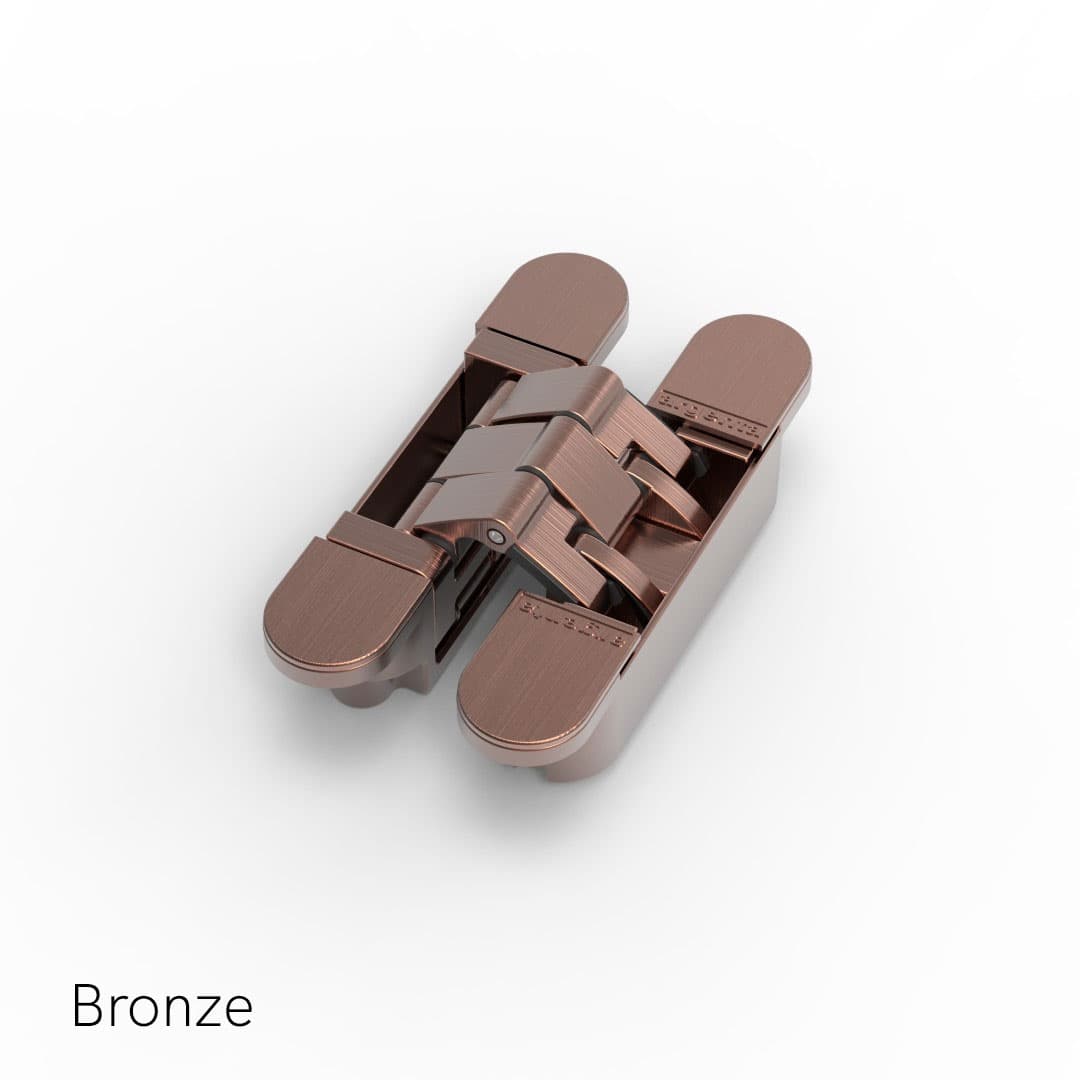

s5 concealed 3D hinge for a flush jib door Bronze

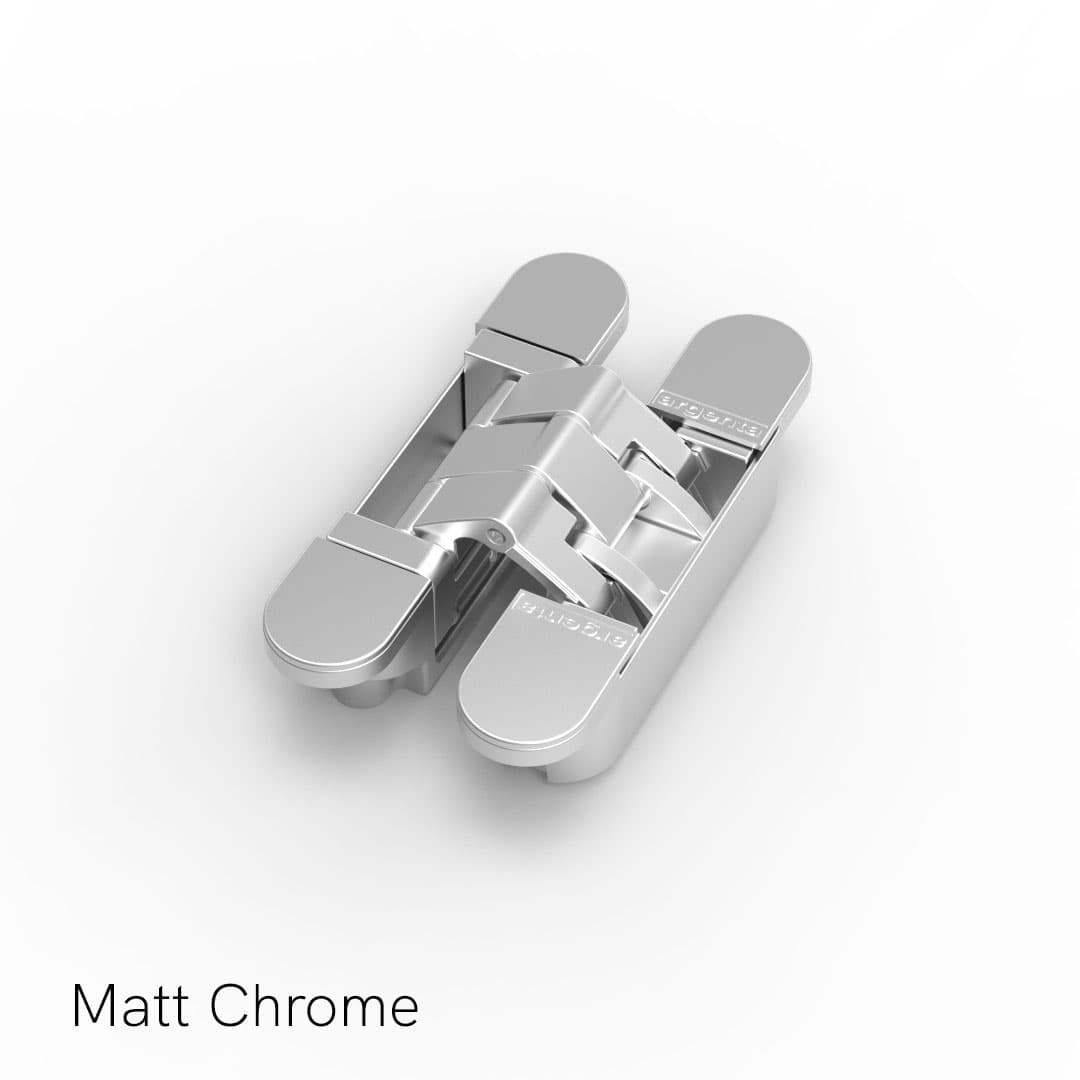

S5 concealed 3D hinge for a flush jib door Matt Chrome

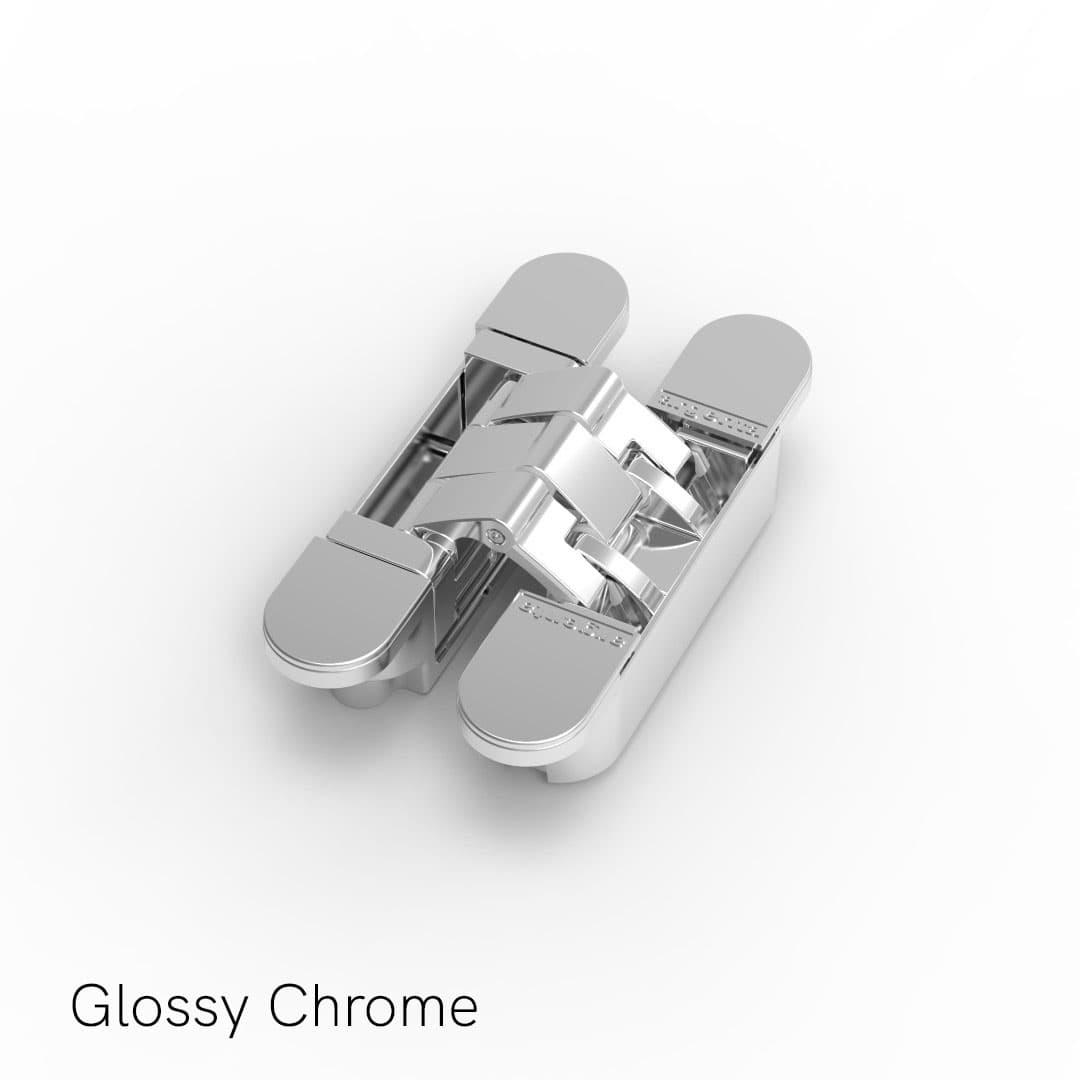

S5 concealed 3D hinge for a flush jib door Glossy Chrome
S5 concealed 3D hinge for a flush jib door Polished Brass

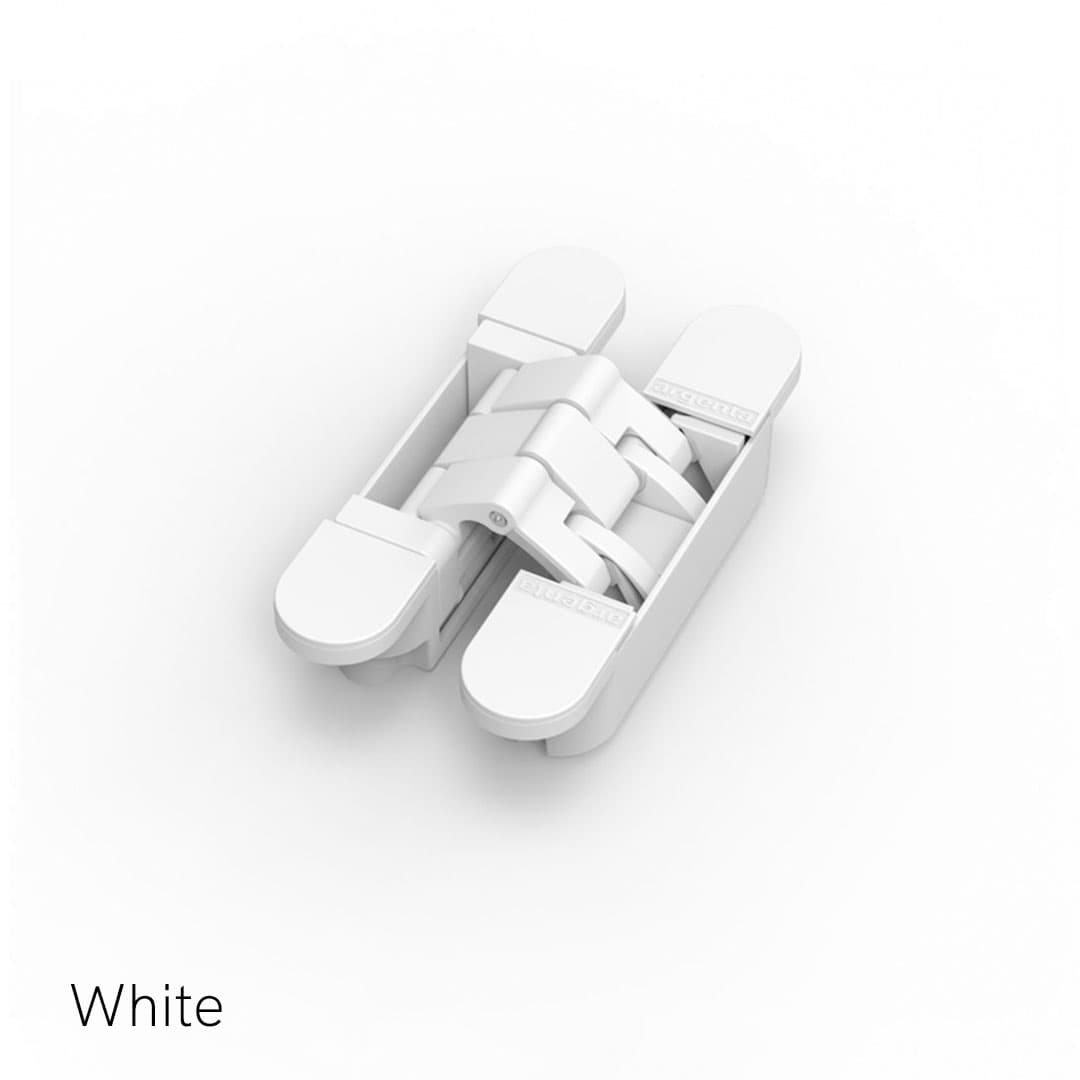

S5 concealed 3D hinge for a flush jib door White

Technical resources.

For more information on the number of hinges you require, hinge and door dimensions and adjustment options, please check out these technical documents.
