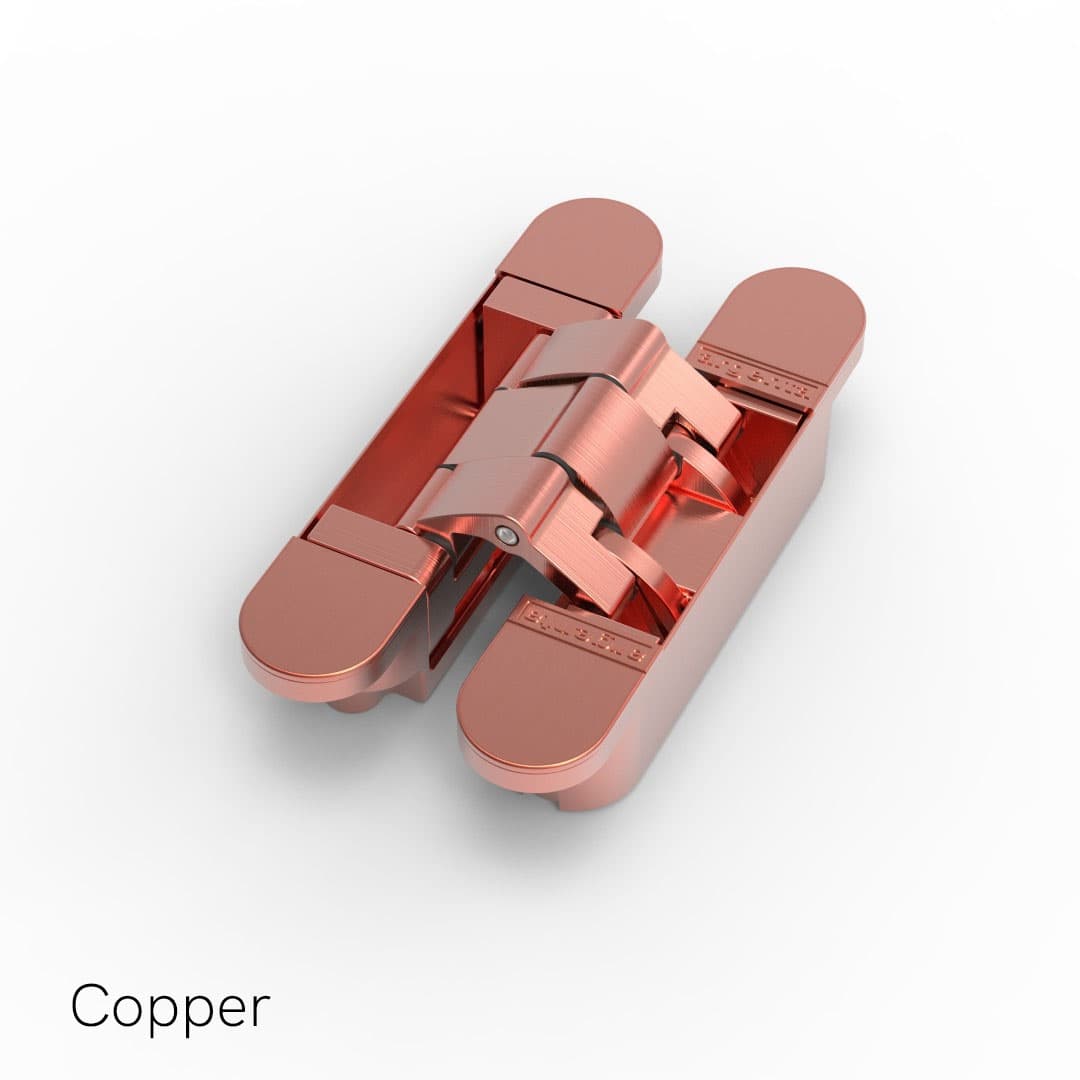

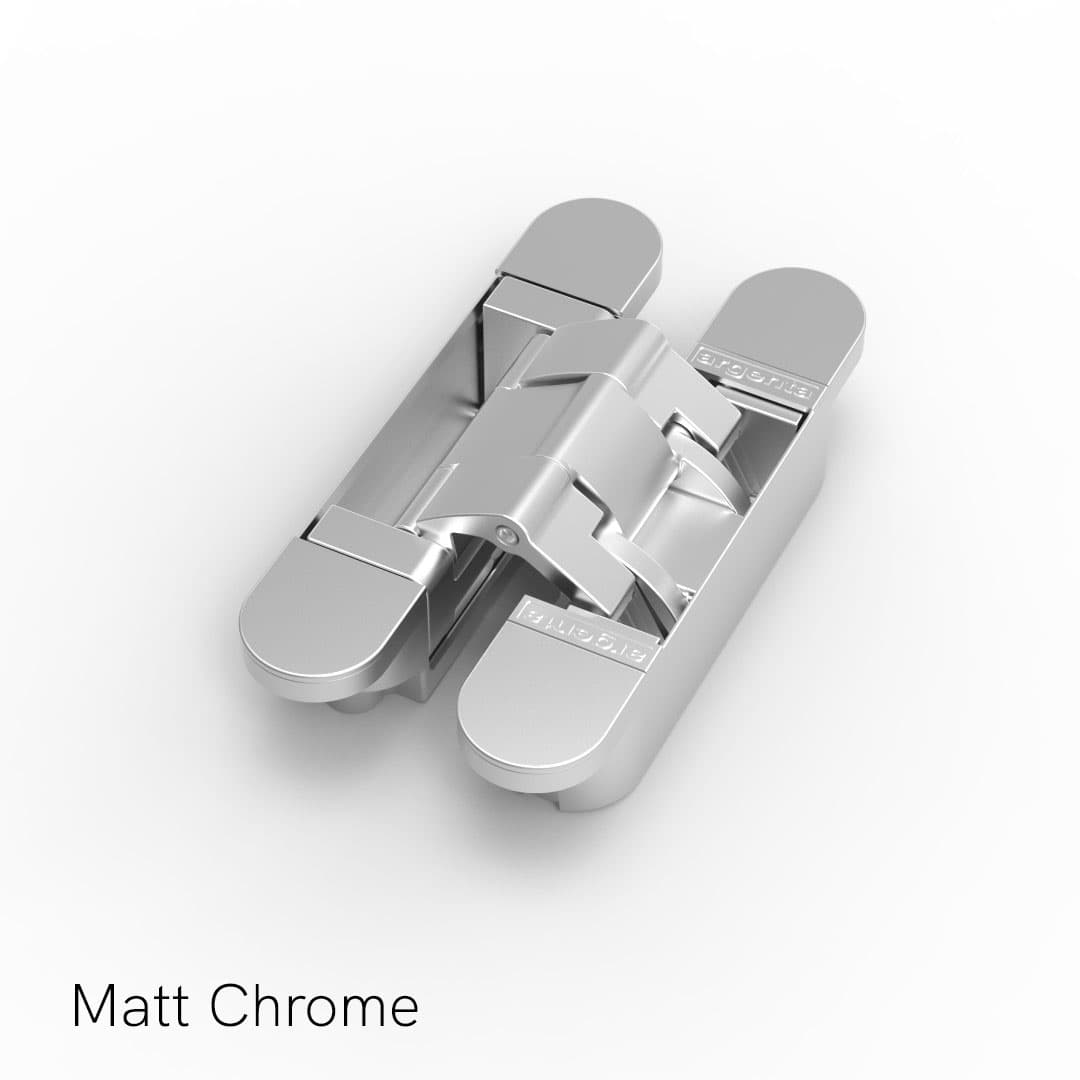

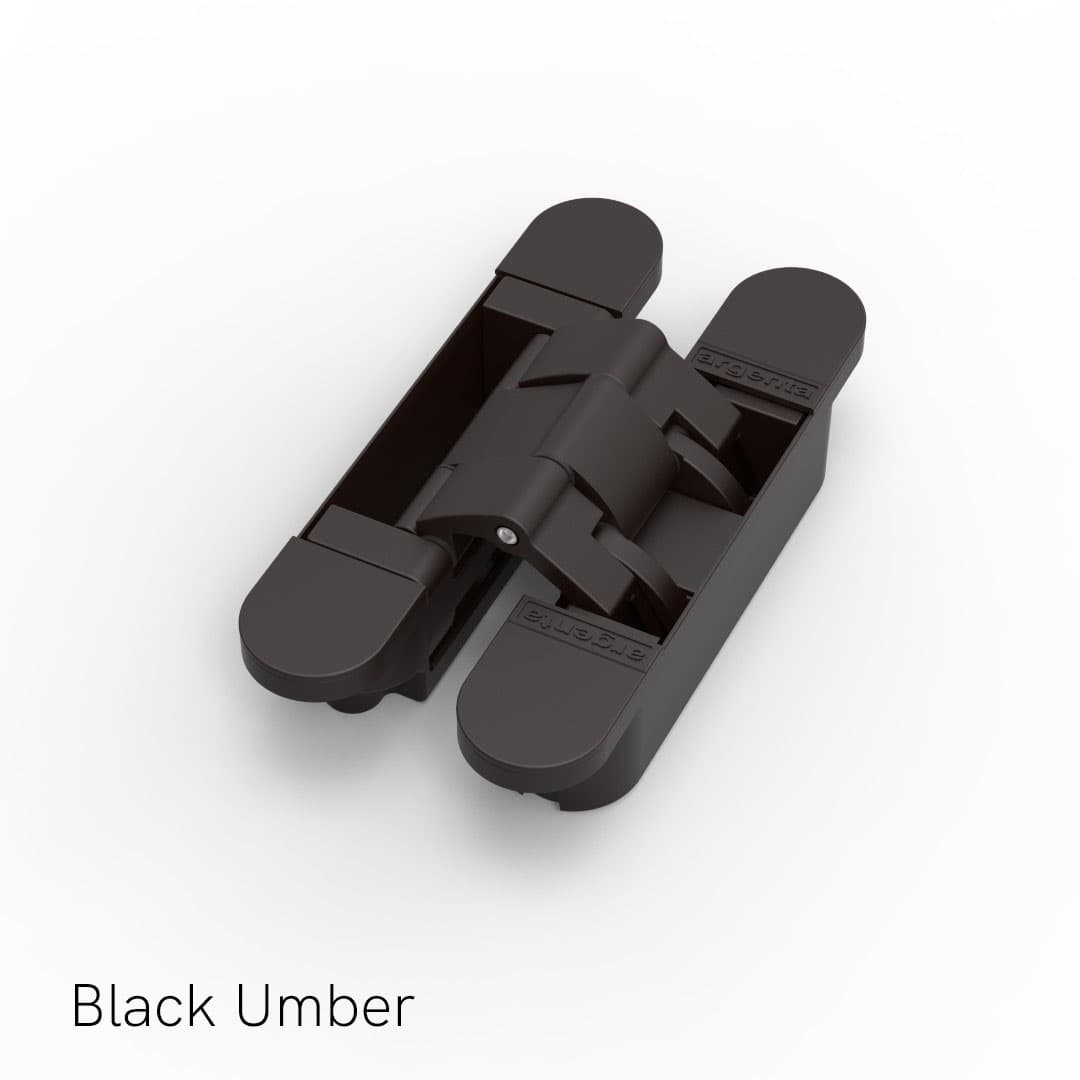

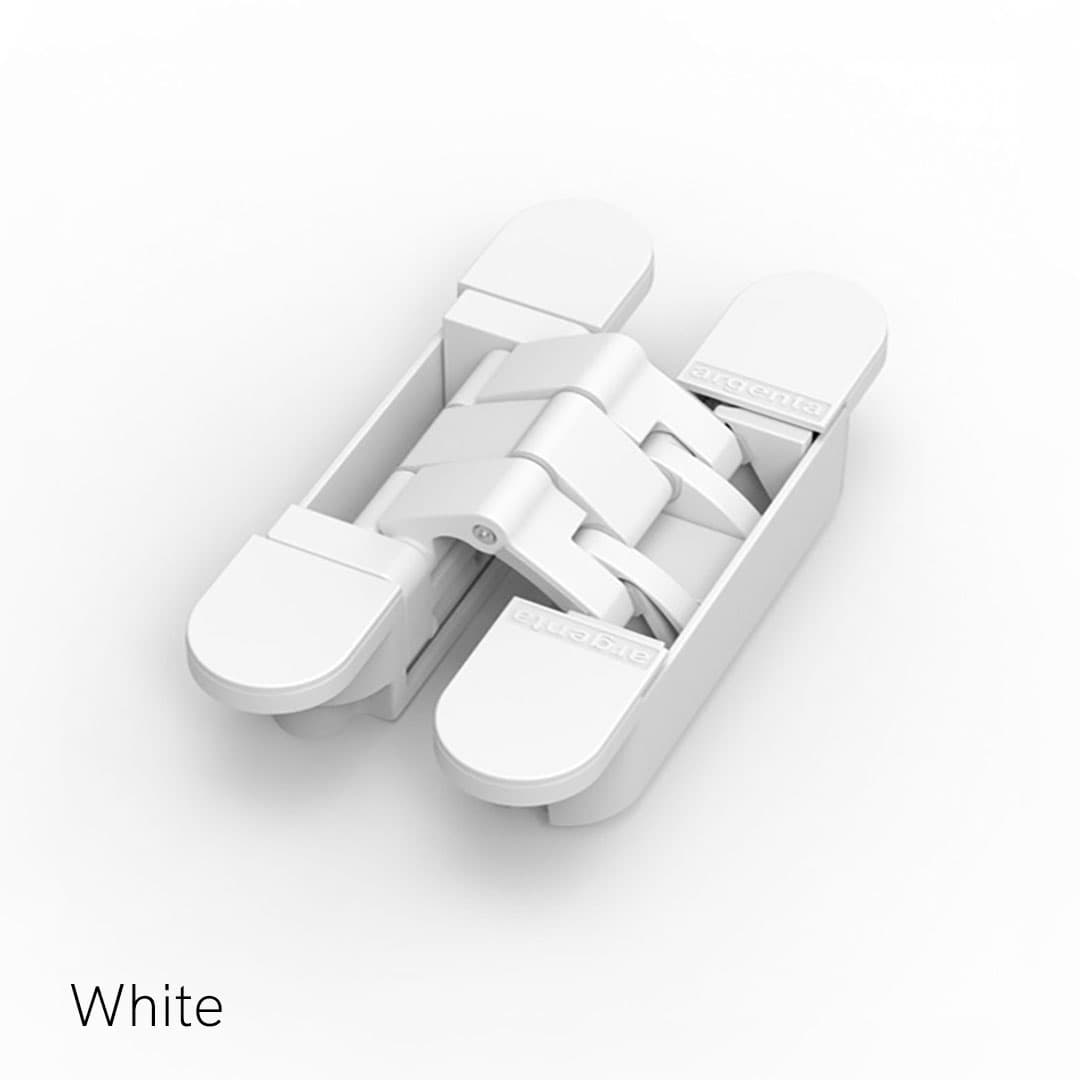

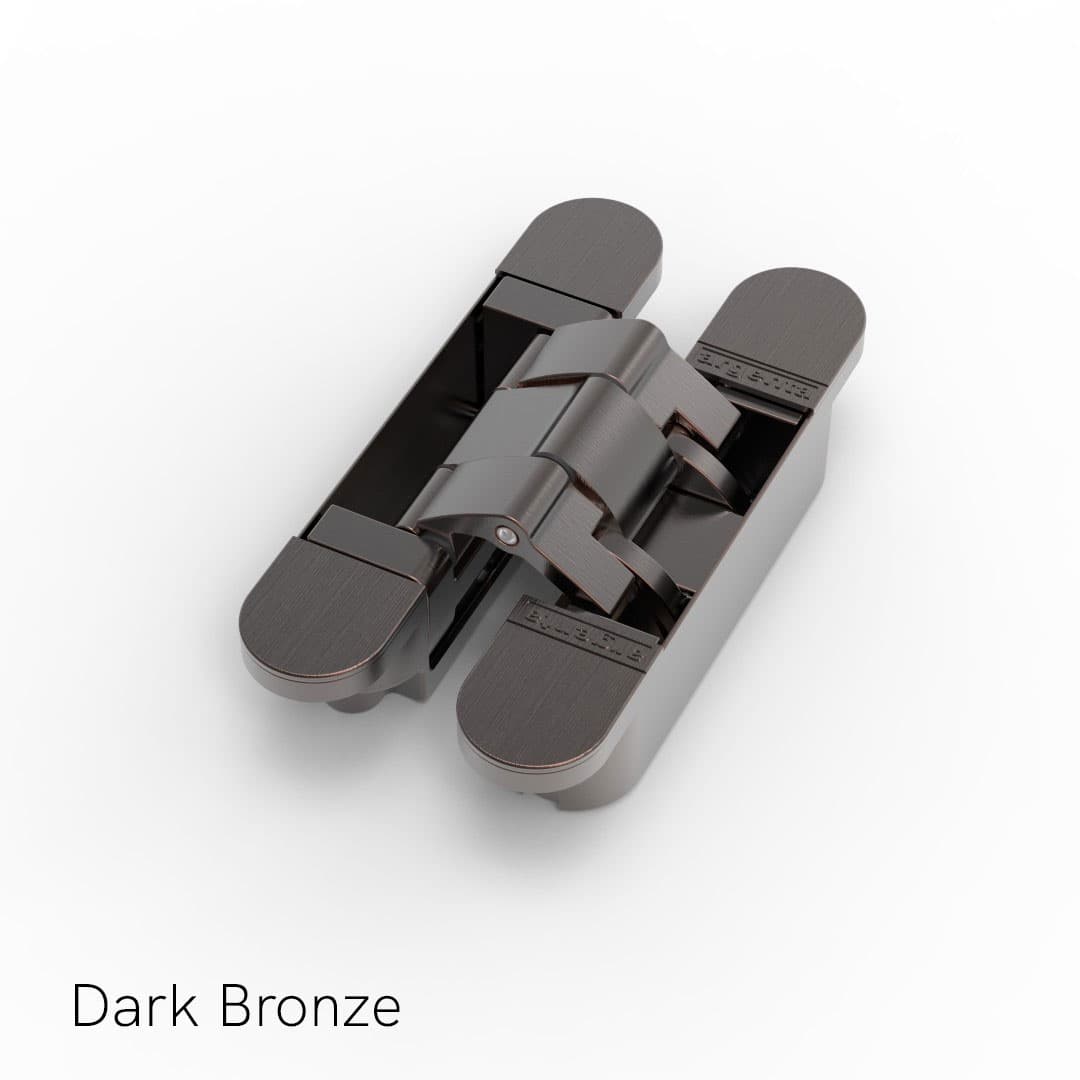

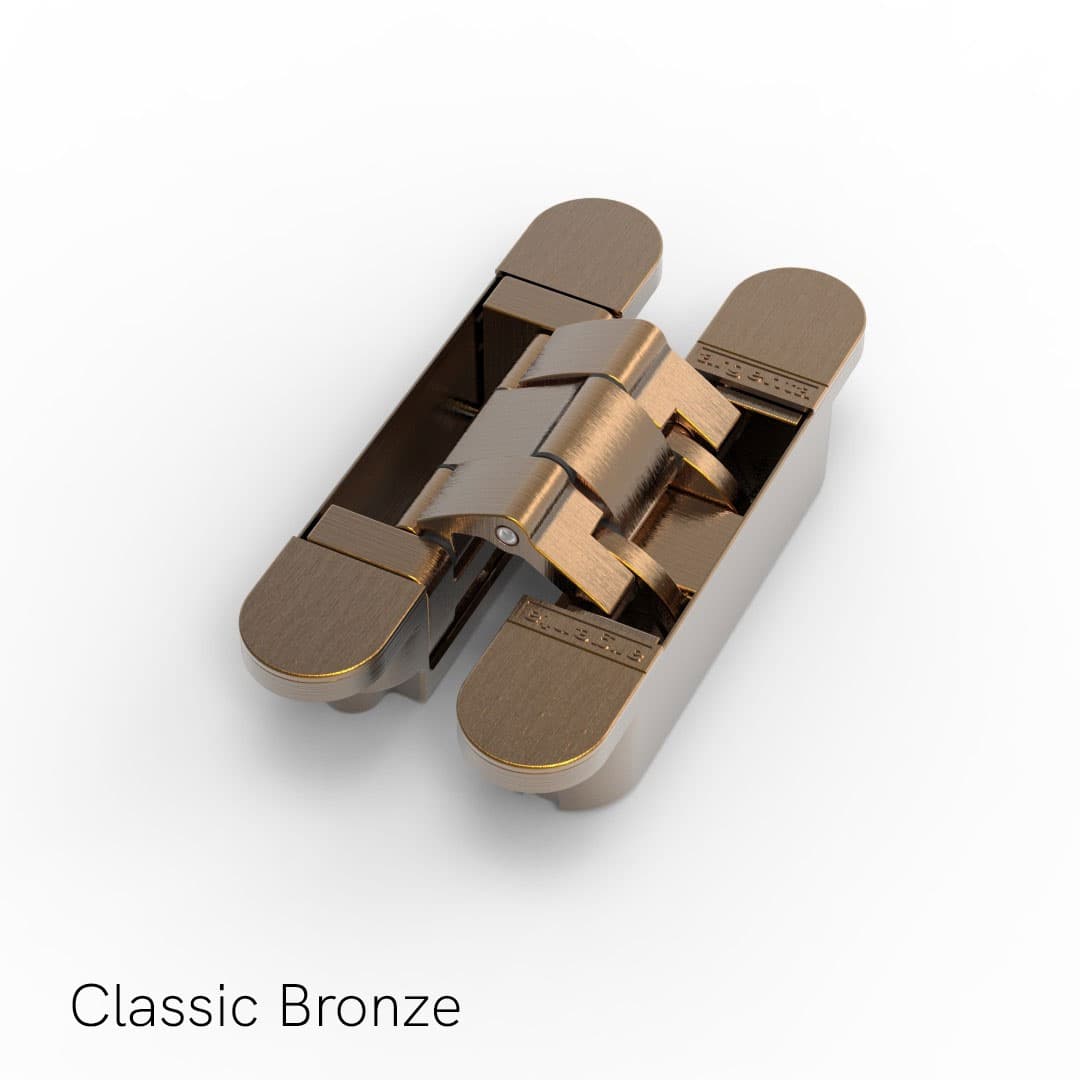

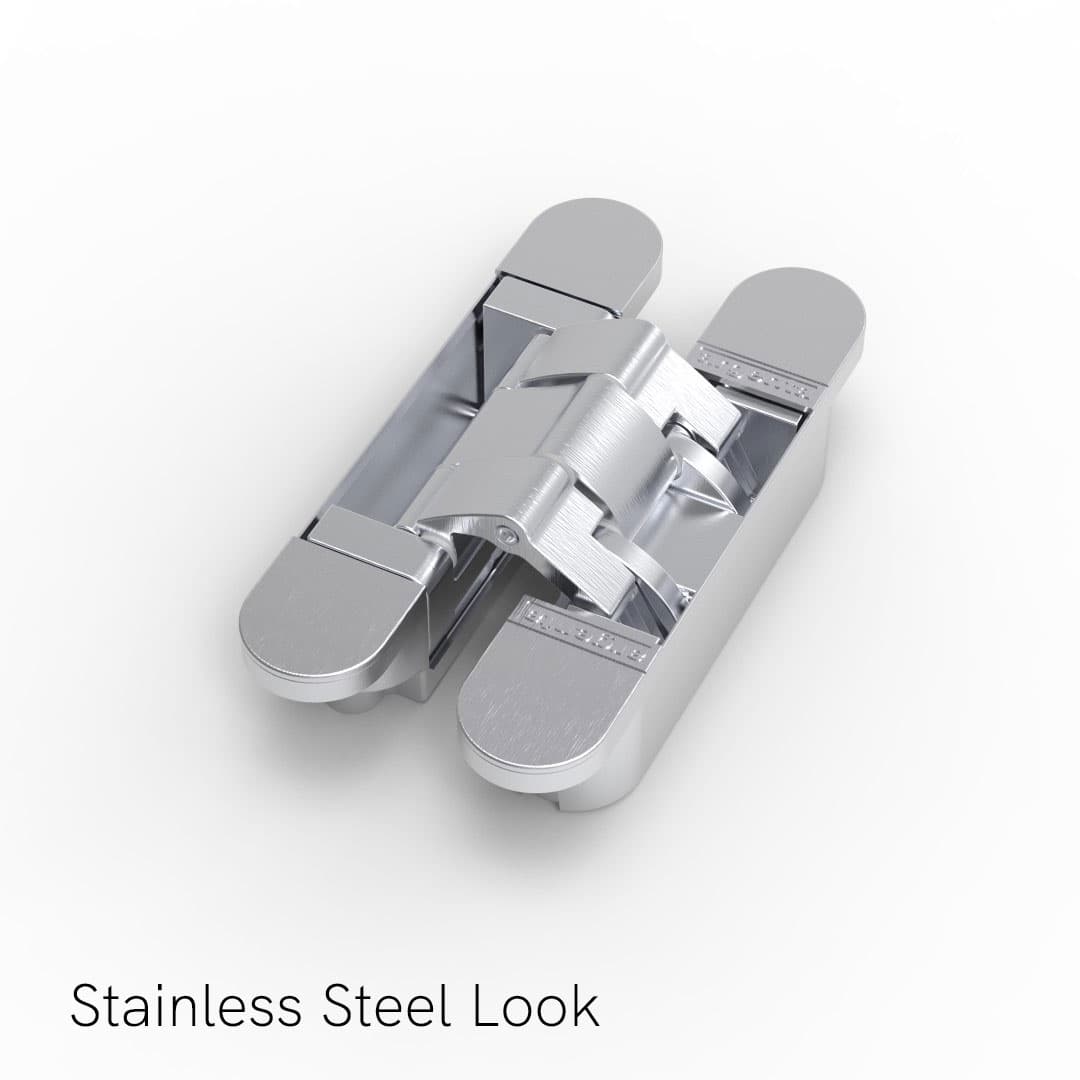

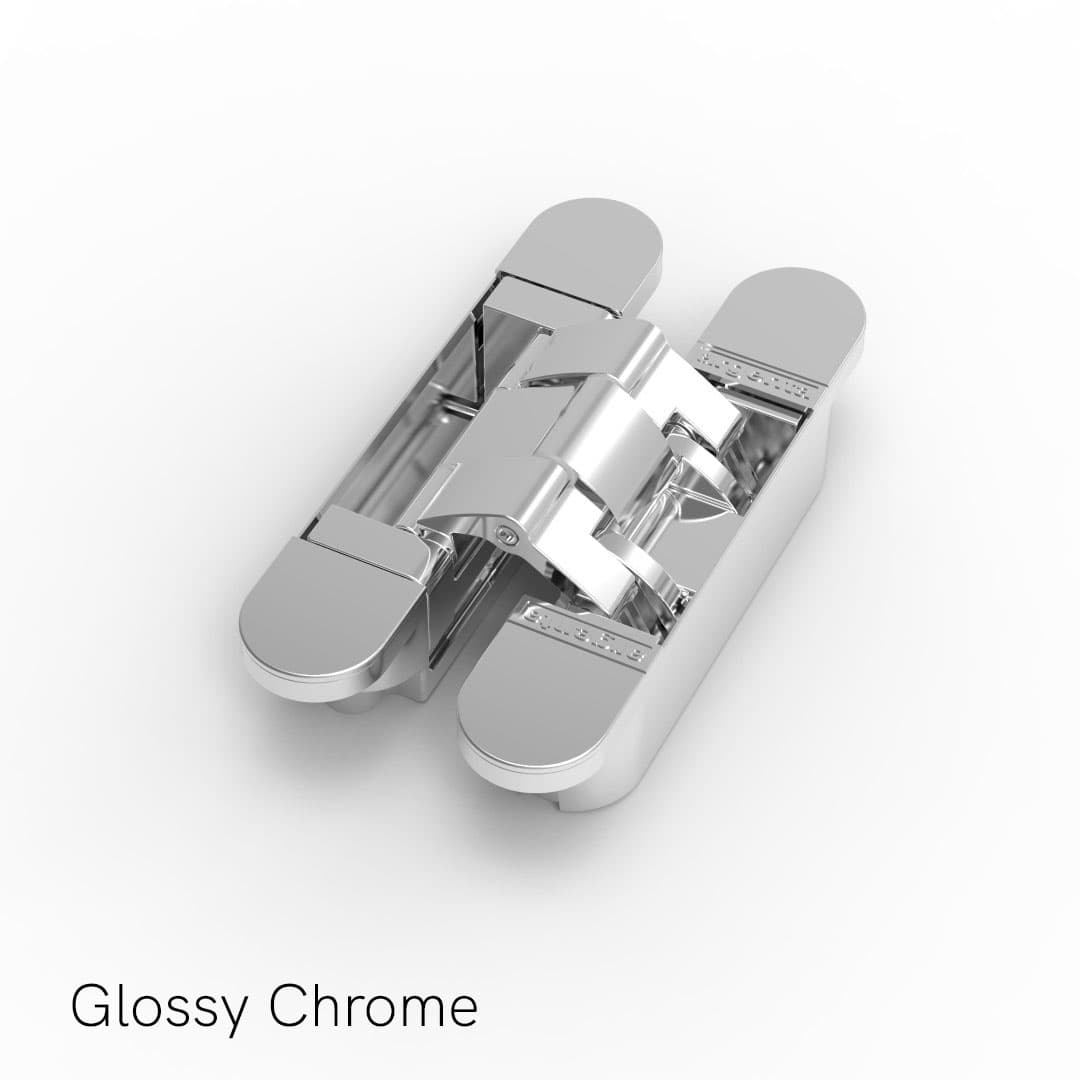

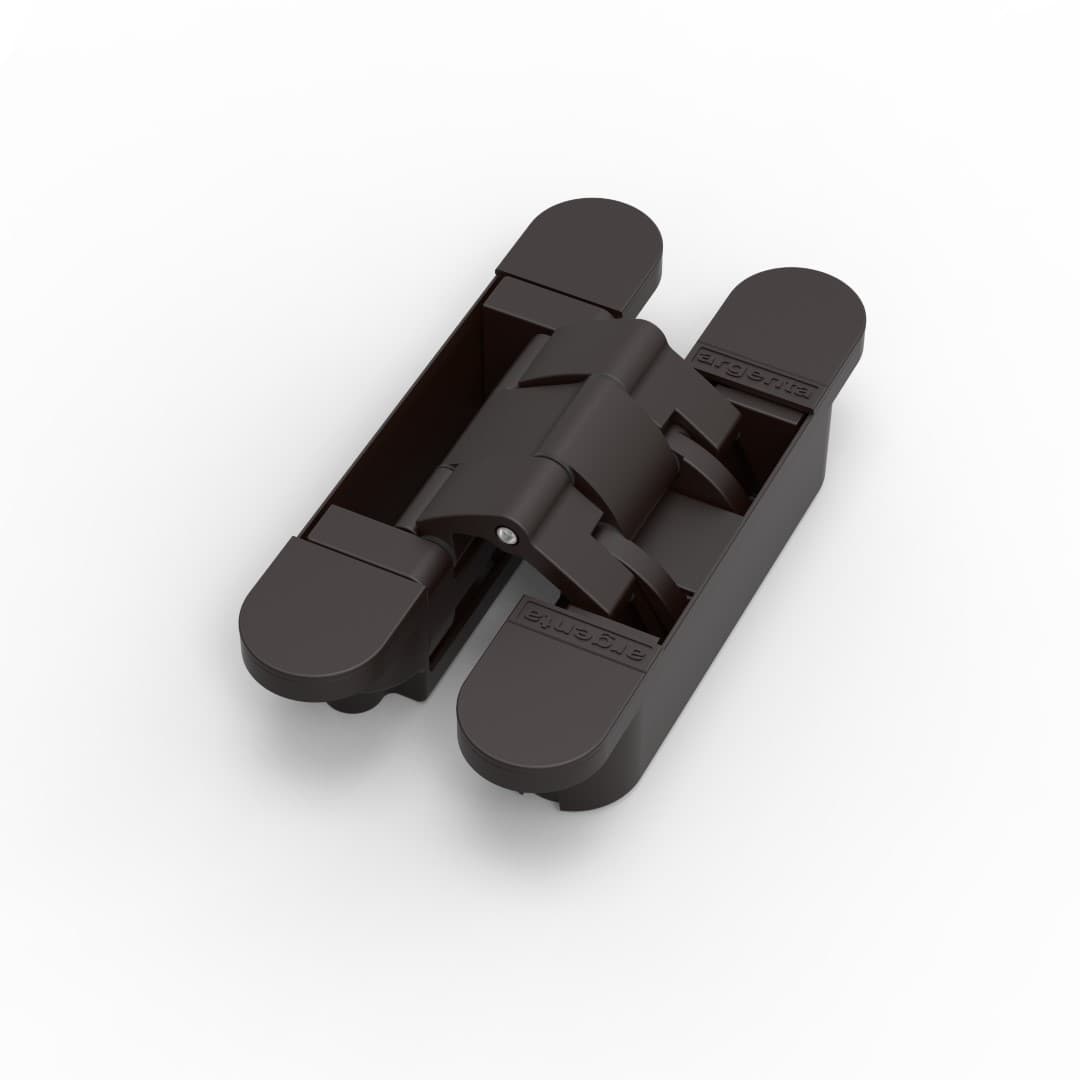

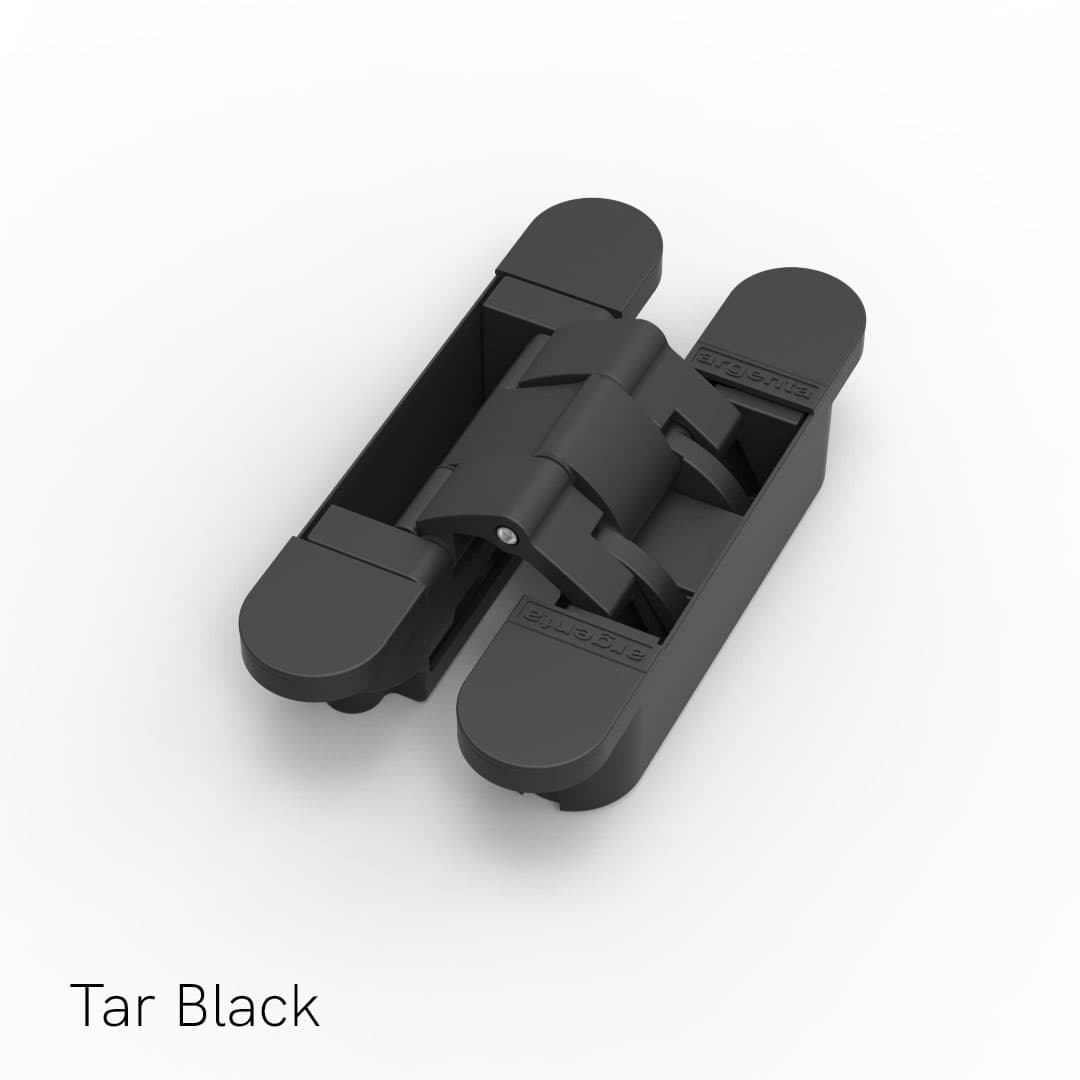

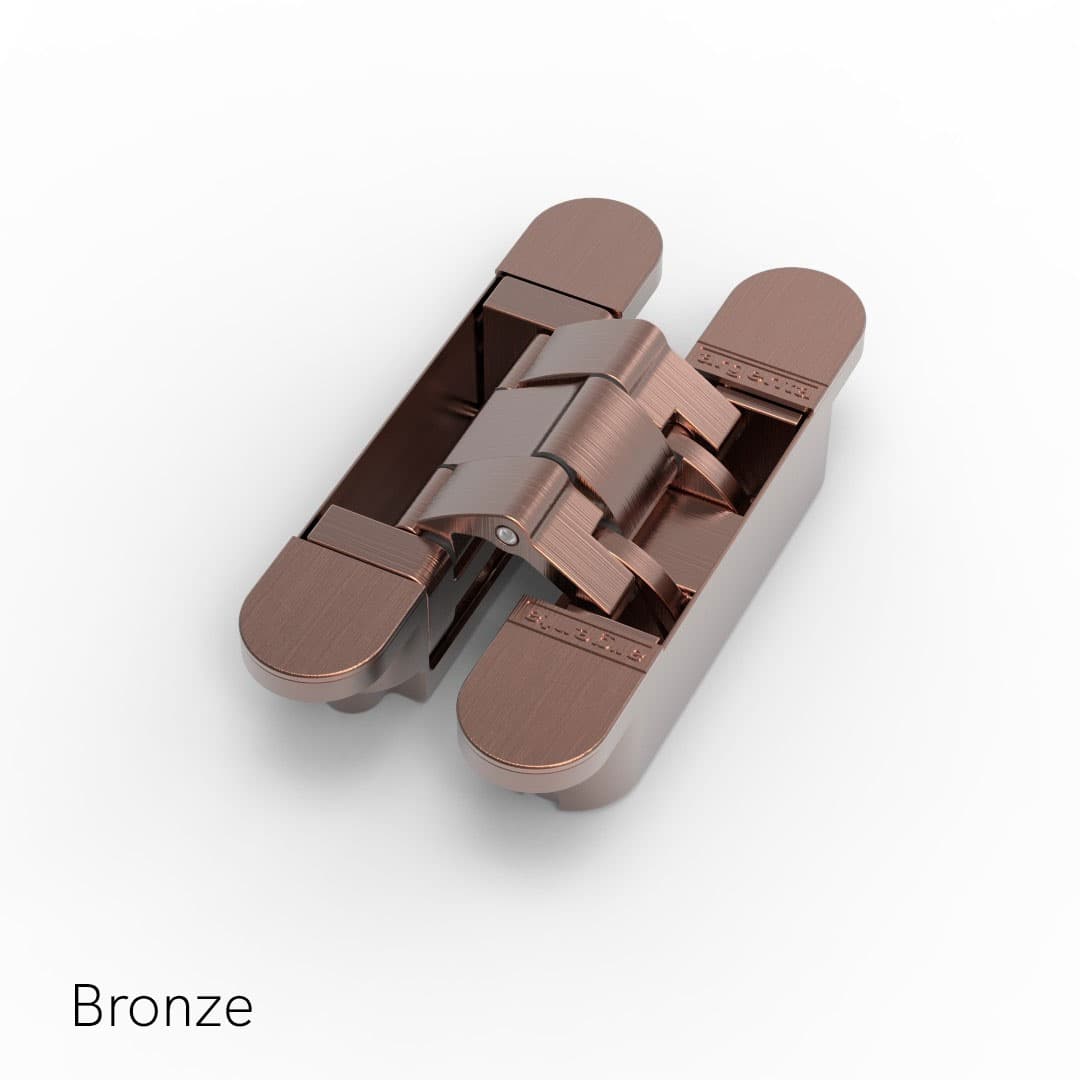

M-6 3D Concealed Hinge
Envo Code: ECH.1002.01
These products are unique to other invisible hinges as not only do they have no visible screws, they come with an ‘Easy Hook’ feature. This allows the hinge to be separated into two parts, one part is fitted to the frame and the other to the door.
The door is then lifted into position where the hinge parts hook together, holding in place while the screw fixings are inserted. This feature enables one person to complete the installation without assistance.
The minimum door thickness is 35mm and will allow the door to open 180 degrees. Hinges are supplied as single items with fixings.
Please see this M-6 for the FD30 option.
For more technical information, please see the resources section below.
Envo Code: ECH.1002.01
These products are unique to other invisible hinges as not only do they have no visible screws, they come with an ‘Easy Hook’ feature. This allows the hinge to be separated into two parts, one part is fitted to the frame and the other to the door.
The door is then lifted into position where the hinge parts hook together, holding in place while the screw fixings are inserted. This feature enables one person to complete the installation without assistance.
The minimum door thickness is 35mm and will allow the door to open 180 degrees. Hinges are supplied as single items with fixings.
Please see this M-6 for the FD30 option.
For more technical information, please see the resources section below.
Technical resources.
For more information on the number of hinges you require, hinge and door dimensions and adjustment options, please check out these technical documents.
